iCeiling<sup>®</sup> SunU5040 (Sun See-through wall system)-Jiangsu Pivot New Decorative Materials Co.,Ltd.

CLASSIFICATIONS

SunU5040 belongs to see-through outdoor wall system, it can be installed vertically and horizontally, firm and of strong sense of line, a variety of wooden texture surface creates warm feeling, suitable for most of the public areas. With specially designed wind-proof structure, the reinforced carrier is of high security.

◆ SYSTEM COMPONENT

SunU5040 Ceiling System	Main Material				Carrier
	Product Type	Material Type	Size (WHL)mm	Thickness (mm)	Product Type	Material Type	Size (mm)	Thickness (mm)
	U Type Extrusion	AA Level Aluminum Alloy	40*15	2.0	Buckle Extrusion	Aluminum	40*15	2.0

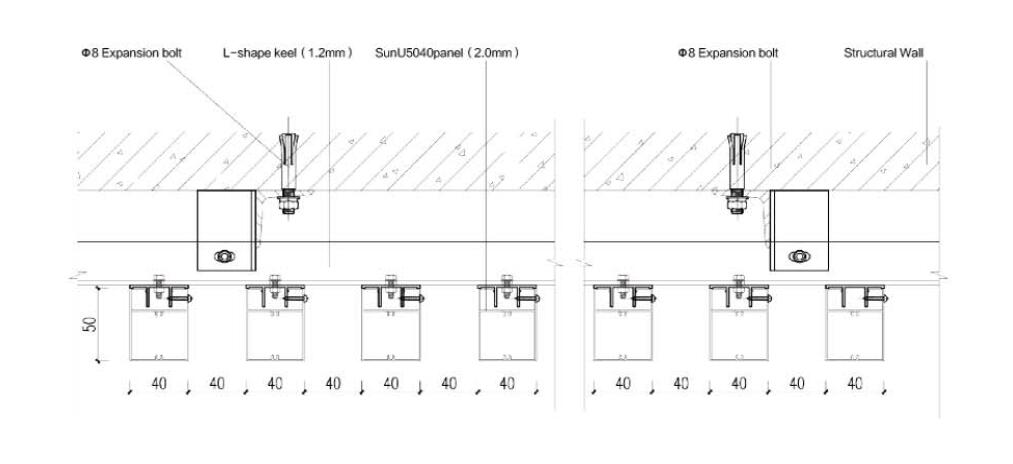

Structure Drawing

◆DESCRIPTION	◆Application and advantages
Texture: pls refer to Pivot color chart Distance modulus: 90mm or adjust as needed Perforation: no Processing: hot extrusion Surface treatment: hot-pressing lamination (film thickness≈0.2mm) Special size could be customized.	iCeiling®SunU5040 (Sun See-through wall system) advantage: ● light structure ● easy to install ● texture natural and clear ● dedicated carrier with wind proof structure ● closed type installation structure on the back
