CT5040 belongs to See-through ceiling system, features in high directionality, could make a clear and open visual effect, film coated surface of rich texture and strong 3D-effect, various color choices, wind-proof structure carrier, easy to install, suitable for a variety of areas. The surface can be perforated with acoustic material backing, have good sound-absorbing function.
◆SYSTEM COMPONENT
| CT5040 Ceiling System | Main Material | Carrier | ||||||
| Product Type | Material Type |
Size (W*H*L)mm |
Thickness (mm) |
Product Type | Material Type |
Size (mm) |
Thickness (mm) |
|
| Concave Convex Type | AA Level Aluminum Alloy |
(50+40)*40* (1000-6000 ) |
0.8 | DG01 Carrier | Galvanized Steel | 28*28 | 0.6 | |

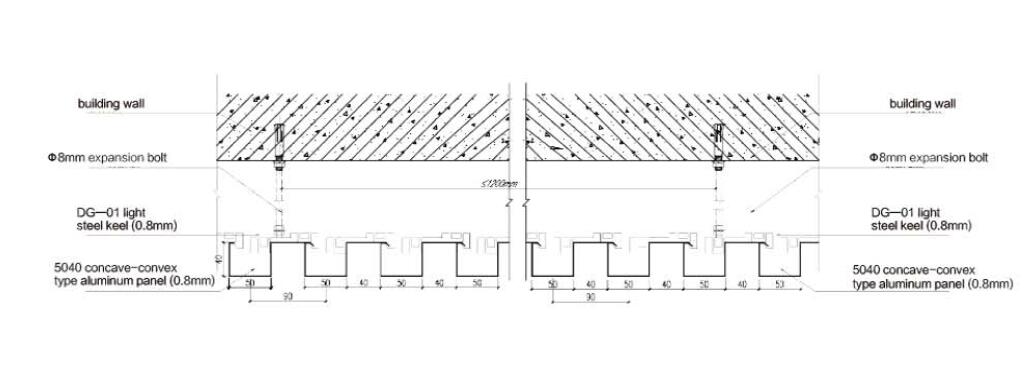

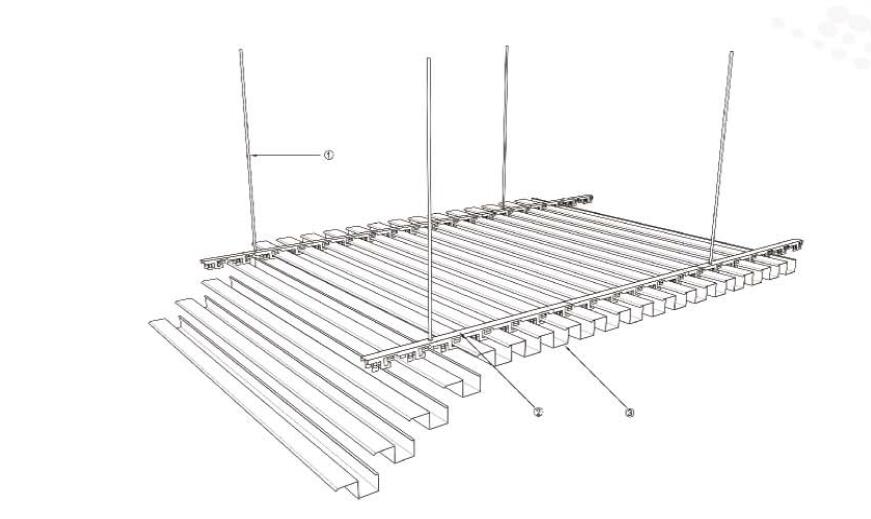

| Structure Drawing |
|
|
||||||
| ◆DESCRIPTION | ◆Application and advantages |
|
Texture: pls refer to Pivot color chart Distance modulus: 90mm or adjust as needed Main carrier interval ≤1200mm Thread rod interval ≤1200mm Perforation: various perforation pattern available, Sound-absorbing paper backing, NRC=0.7 Processing: ①compression moulding ②roll-forming Surface treatment: hot-pressing lamination (film thickness≈0.2mm) Special size could be customized. |
iCeiling®CT5040 (concave-convex type ceiling system) advantage: ● dedicated steel carrier ● variety choice of distance modulus ● texture natural and clear ● easy to install ● wood texture consistency |
