CU30100 belongs to See-through suspended ceiling system, features in high directionality, could make a clear and open visual effect, U-shape surface can be perforated with acoustic material backing, have good sound-absorbing function. Film coated surface of rich texture and strong 3D-effect, various color choices, specially designed carrier with wind-proof structure, easy to install, suitable for a variety of areas.
◆SYSTEM COMPONENT
| CU30100 Ceiling System | Main Material | Carrier | Fastener | |||||||
| Product Type | Material Type |
Size (W*H*L)mm |
Thickness (mm) |
Product Type | Material Type |
Size (mm) |
Thickness (mm) |
Size (mm) |
Thickness (mm) |
|
| U Type Extrusion | AA Level Aluminum Alloy |
30*100* (1000-6000 ) |
0.8 | 通用卡齿龙骨 | Galvanized Steel | 23*43 | 0.6 | 40*50 | 0.8 | |

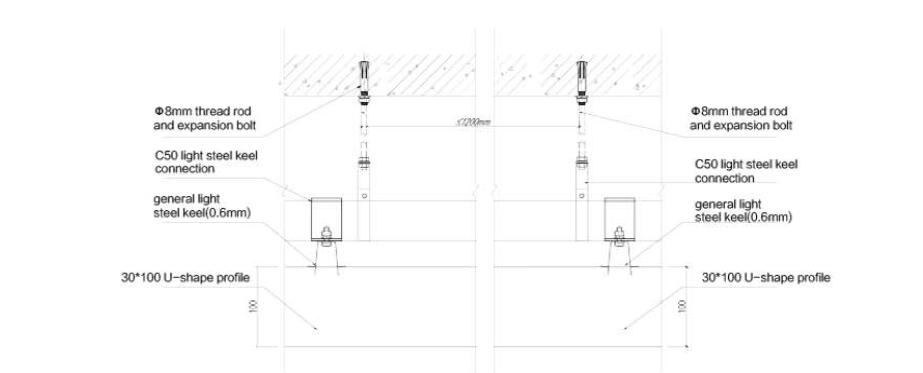

| Structure Drawing |
|
|
|
|||||||
| ◆DESCRIPT ION | ◆Application and advantages |
|
Texture: pls refer to Pivot color chart Distance modulus: 130mm or adjust as needed Main carrier interval ≤1200mm Thread rod interval ≤1200mm Perforation: various perforation pattern available, Sound-absorbing paper backing, NRC=0.7 Processing: ①compression moulding ②roll-forming Surface treatment: hot-pressing lamination (film thickness≈0.2mm) Special size could be customized. |

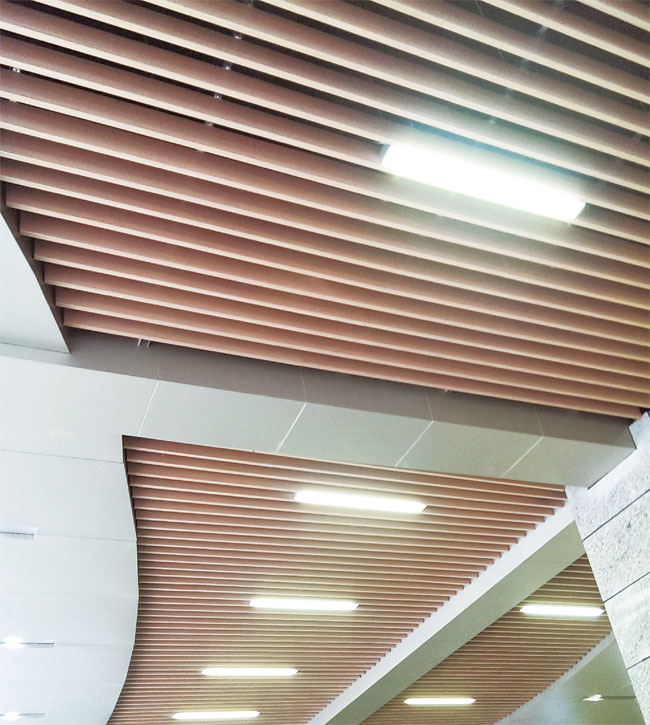

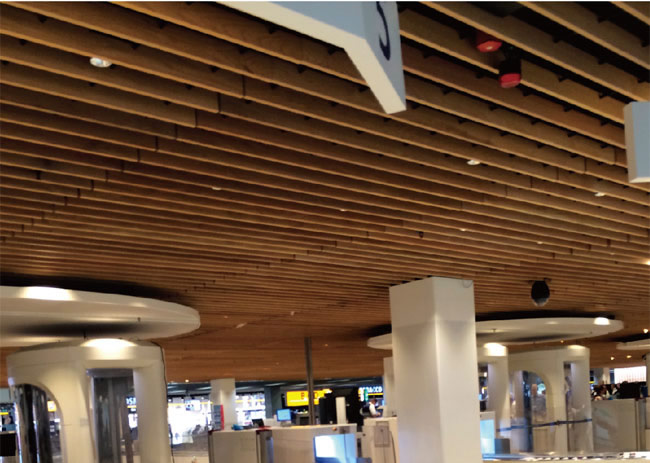

iCeiling®CU30100 (see-through suspended ceiling system) advantage: ● wood texture consistency ● easy to install ● dedicated steel carrier ● variety choice of distance modulus |
