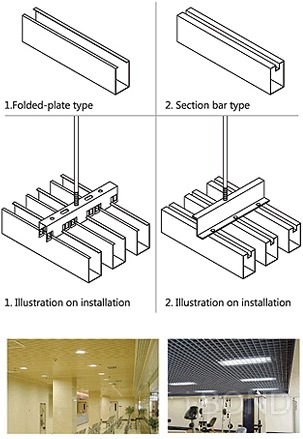

TK(See-through) Series
-----square tube ceiling
General Introduction of Product
Square plate is one of the most classic metal ceiling Plate products. With a variety of design and Style options, the products can be widely used in various industries.
Quality Standard and Specification
Specification:
Range of width: 15~100mm
Range of length: 600~6000mm
Range of height: 30~200mm
Coating: pre-roller coating,electrostatic powder spraying of fluorocarbon spraying. The color of coating can be mixed according to customer requirement.
Film thickness of coating:
Pre-roller coating: 25μ
Electrostatic powder: 60μ
Fluorocarbon spraying: 40μ

Hoisting system
The whole hoisting system is made of high-quality zinc-galvanized steels. All keels and connecting parts were designed based on calculations to ensure the safety and reasonability of the products.

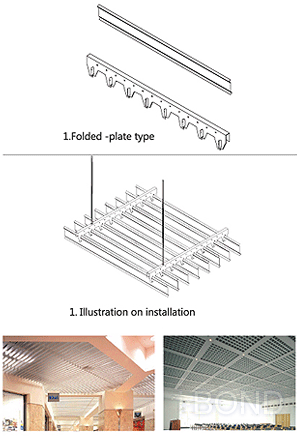

TK (See-through) Series
---blade ceiling / grid ceiling
General introduction of product
Suspended plates / gratings are see-through metal ceiling plates. With novel and moderm designs, a wide range of style and outstanding performace, the products are widely used in large modern construction projects.
Quality Standard and Specification
Specification of suspended plates:
width: 100 ~ 200 ~300 mm
Length: 100 ~ 600 mm
Material: Aluminum alloy AA3003
Thickness: 0.7 ~ 1.5 mm
Coating: pre-roller coating or electrostatic powder spraying. The color of coating can be mixed according to customer requirement.

Specification of gratings:
Width: 100 ~ 200 ~ 300 mm
Length: 1200 mm Thickness: 0.5 mm
Material: Aluminum alloy AA3003
Coating: pre-roller coating or electrostatic powder spraying. The color of coating can be mixed according to customer requirement.

Hoisting system
The whole hoisting system is made of high-quality zinc-galvanized steels. All keels and connecting parts have been designed based on calculations to ensure the safety and reasonability of the products.

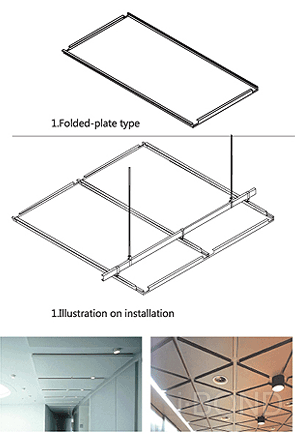

GD (Hook) Series
General introduction of product
For hook series products, a variety of model and design options is availiable. The products are particularly suitable for large-size or complicated spaces.
Quality Standard and Specification

Specification:
Range of width: 300 ~ 15000mm
Length: 600 ~ 6000mm
Material: aluminum alloy AA3003 or zine-galvanized SECC
Thickness: 1.5 ~ 3.0mm
Coating: pre-roller coating or electrostatic powder spraying. The color of coating can be mixed according to customer requirement.


Hoisting system
The whole hoisting system is made of high-quality zinc-galvanized steels. All keels and connecting parts have been designed based on calculations to ensure the safety and reasonability of the products.
TB(Slat) Seriest
General introduction of product
With a variety of model, design and style options, different types of metal ceiling slats can be combined to achieve the desired functions. These products have been used in various construction projects.
Quality Standard and Specification

Specification:
Width: 100 ~ 300mm
Thickness: 0.5 ~ 1.0mm
Length: 1000 ~ 6000mm
Material: aluminum alloy AA3003
Coating: pre-roller coating or electrostatic powder spraying. The color of coating can be mixed according to customer requirement.

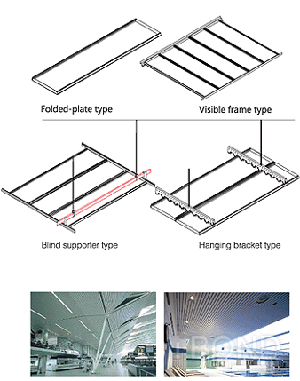

Installation method: blind supporter type, hanging bracket type or visible-frame type.


Hoisting system
The whole hoisting system is made of high-quality zinc-galvanized steels. All keels and connecting parts have been designed based on calculations to ensure the safety and reasonability of the products.

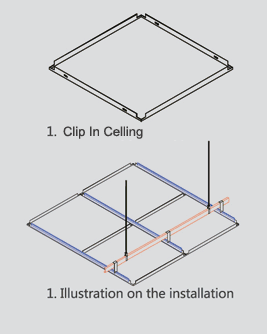

FB(Square plate)series
General introduction of product
Square plate is one of the most classic metal ceiling plate products. With various designs and style options, the products can be widely used in various industries.
Quality Standard and Specification

Specification: 600*600mm
Material: Aluminum alloy AA3003 or Zinc galvanized steel SECC
Thickness: 0.7~1.5mm
Coating: pre-roller coating,electrostatic powder spraying or fluorocarbon spraying. The color of coating can be mixed according to customer requirement.
Characteristics: superior quality, easy assembly and disassembly, reasonable structure and wide application.
Type of installation: hidden supporter type and hook type.

Hoisting system
The whole hoisting system is made of high-quality zinc-galvanized steels. All keels and connecting parts have been designed based on calculations to ensure the safety and reasonability of the products.

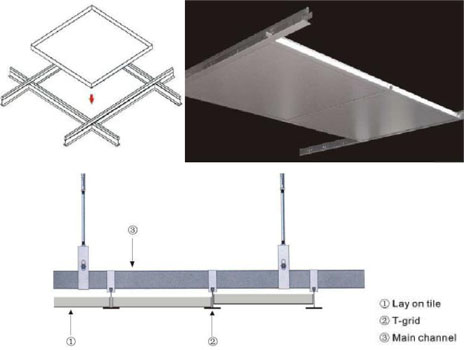

lay on/lay in ceiling
lay on ceiling tile
lay in ceiling tile
FW(Honeycomb)Series
General introduction of product
For honeycomb plate products, a variety of options for the thickness of plates is available(6, 10, 15, 20, 25mm)
Quality Standard and Specification

Specification:
Front aluminum panel: 0.7~1.2mm
Back aluminum panel: 0.5~1.0mm
Aluminum honeycomb: the thickness of aluminum foil: 0.05mm,
length of a side: 5mm
Coating: pre-roller coating,electrostatic powder spraying or fluorocarbon spraying. The color of coating can be mixed according to customer requirement.
Characteristics of the product:
Aerospace technology, superior quality, flat surface, a variety of options for designs and styles, easy installation.

Hoisting system

The whole hoisting system is made of high-quality zinc-galvanized steels. All keels and connecting parts have been designed based on calculations to ensure the safety and reasonability of the products.
