CF4070 belongs to See-through ceiling system, features in high directionality, could make a clear and open visual effect, novel & unique,film coated surface of rich texture and strong 3D-effect, various color choices, and equipped with wind-proof structure, suitable for a variety of areas.
◆ SYSTEM COMPONENT
| CF4070 Ceiling System | Main Material | Carrier | Fastener | |||||||||
| Product Type | Material Type |
Size (W*H*L)mm |
Thickness (mm) |
Product Type | Material Type |
Size (mm) |
Thickness (mm) |
Size (mm) |
Thickness (mm) |
Size (mm) |
Thickness (mm) |
|
| Extrusion Tube | AA Level Aluminum Alloy |
40*70* (1000-6000 ) |
1.0 | C Type | Galvanized Steel | 30*40 | 1.2 | 42*50 | 1.2 | 38*50 | 1.2 | |

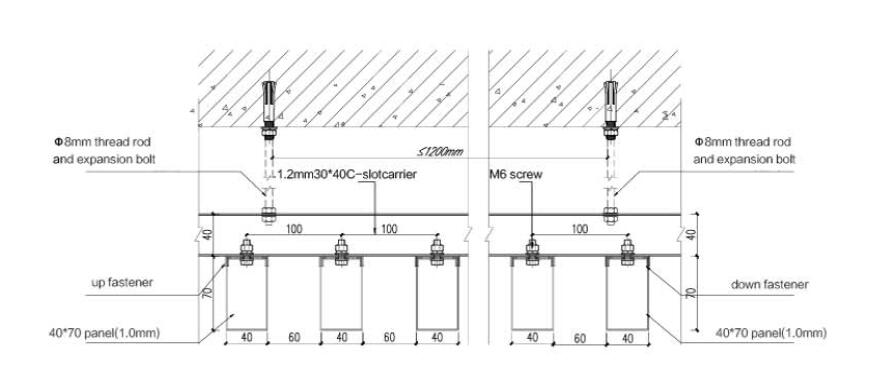

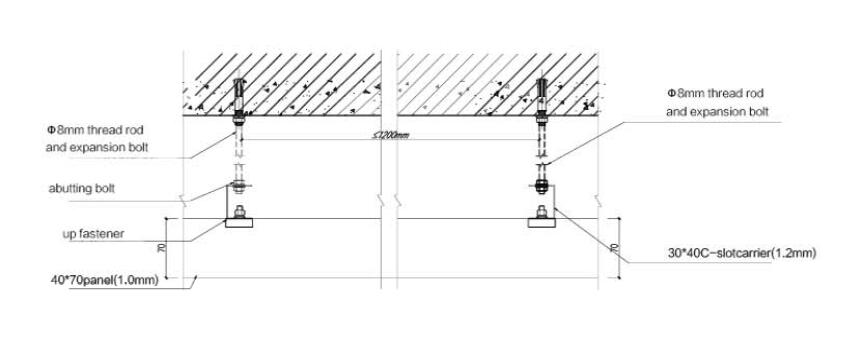

| Structure Drawing |
|
|
|
|||||||||
| ◆ DESCRIPTION | ◆Application and advantages |
|
Texture: pls refer to Pivot color chart Distance modulus: 100m or adjust as needed Main carrier interval ≤1200mm Thread rod interval ≤1200mm Perforation: no Processing: hot extrusion Surface treatment: hot-pressing lamination (film thickness≈0.2mm) Special size could be customized. |
iCeiling®CF4070 (see-through ceiling system) advantage: ● aluminum alloy extrusion ● see-through effect ● wood veneer consistency ● easy to install ● good straightness ● perfect edgefold |
